MR-series |
MR 滿足了微小角度的控制需求，上下精密軸承的配置方式，讓MR具備良好的同軸性與連續旋轉的功能，透過平台上方的M6及M4孔跟外部的光學機構件進行結合。
| 產品規格表 |

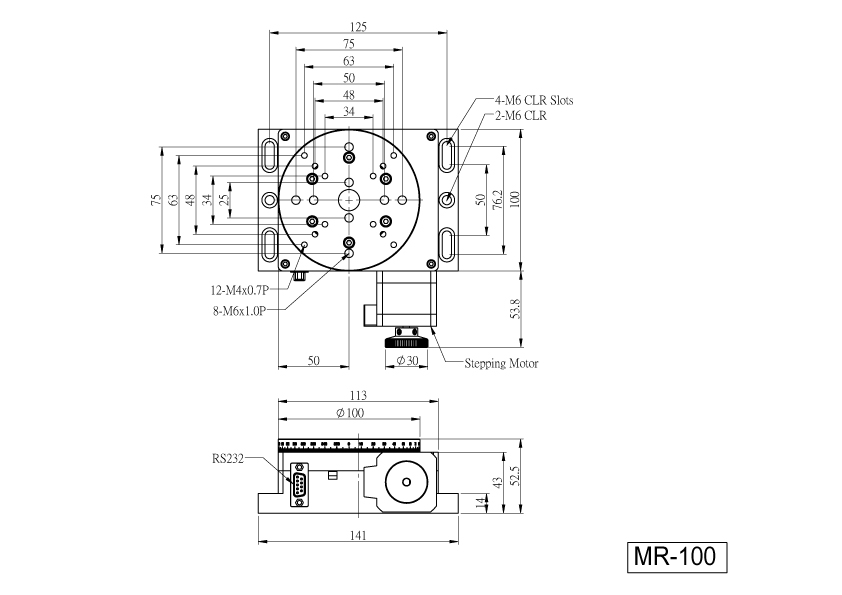

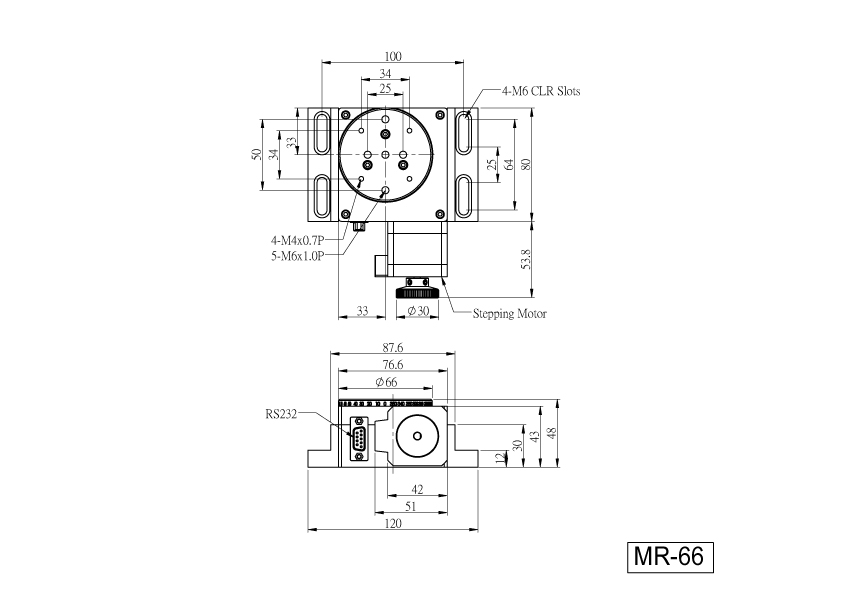

| Part Number | M-5-MR-66 PDF | M-5-MR-100 PDF | |
| Stage Size (mm) | Ø 66 | Ø 100 | |
| Aperture (mm) | None | None | |
| Reduction ratio | Worm gear(1:90) | Worm gear(1:90) | |
| Material | Aluminum / CopperAluminum / Copper | ||
| Weight | 1.5Kg | 2.2Kg | |
| Resolution | (Full) [°/pulse] | 0.008 | 0.008 |
| (Half) [°/pulse] | 0.004 | 0.004 | |
| (20000) [°/pulse] |
0.0002
|
0.0002
|
|
| Max Speed [ ° /sec ] | 45 | 30 | |
| Positioning Accuracy[ ° ] | 0.1 | 0.1 | |
| Positioning Repeatability[ ° ] | + /- 0.05 | + /- 0.01 | |
| Load Capacity[ N ] | 49 ( 5.0 Kgf ) | 98 ( 10 Kgf ) | |
| Limit Sensor( - pulse direction ) | Photoelectric Sensor ( NPN ) ; CCW direction stop at near 0 degree ; CW direction to ∞ | ||
| Origin Sensor | Photoelectric Sensor ( NPN ) | ||
| Sensor | Volatage | DC 5V - DC 24 V | |
| Current | 15mA or less | ||
| Control Output | NPN Open Collector Transistor /Output DC 30V , 50mA or less | ||
| Motor | Type | 5 - phase stepping motor | |
| Step Angle | 0.72 ° | ||
