偏振分光稜鏡

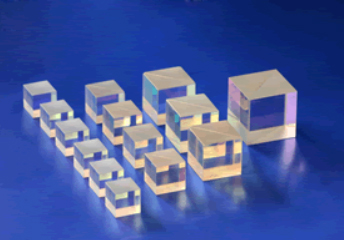

Polarizing Cube Beamsplitters offer a transmission of greater than 90% for P-polarized light and a reflection efficiency of greater than 99% for S-Polarized light across the entire design wavelength range.Each beamsplitter consists of a pair of precision high tolerance right angle prisms cemented together with a dielectric coating on the hypotenuse of one of the prisms.An anti-reflection (AR) coating has been applied to each face of the beamsplitter to achieve less than 1% reflection per surface.

• 主要用於將S偏振和P偏振分開
• 使用廣泛
• 高消光比

Specifications
Material BK7
Dimension Tolerance  ±0.2mm
Extinction Ratio >100:1 for broadband, >500:1 for narrow band
Surface Quality  60/40 scratch and dig
Clear Aperture  >90%
Beam Deviation  <3 arc minutes
Flatness  λ/[email protected] per 25mm
Principal Transmittance  Narrow: Tp>95% and Ts<1%
Broad: Tp>90% and Ts<1%
Principal Reflectance  Narrow: Rs>99% and Rp<5%
Broad: Rs>99% and Rp<10%
Coating Polarization beamsplitter coating on hypotenuse face
AR coating on all input and output faces
Damage Threshold >500mJ/cm2, 20ns, 20Hz, @1064nm




型號 / 敘述 交期 單價 數量 購物車
P-V3MUPB0106B

10.0*10.0*10.0mm/633nm/Tp/Ts:>500:110.0*10.0*10.0mm/633nm/Tp/Ts:>500:1

3 weeks
NT$4200
P-V3MUPB0136B

12.7*12.7*12.7mm/633nm/Tp/Ts:>500:112.7*12.7*12.7mm/633nm/Tp/Ts:>500:1

3 weeks
NT$4440
P-V3MUPB0206B

20.0*20.0*20.0mm/633nm/Tp/Ts:>500:120.0*20.0*20.0mm/633nm/Tp/Ts:>500:1

3 weeks
NT$5820
P-V3MUPB0256B

25.4*25.4*25.4mm/633nm/Tp/Ts:>500:125.4*25.4*25.4mm/633nm/Tp/Ts:>500:1

3 weeks
NT$6420
