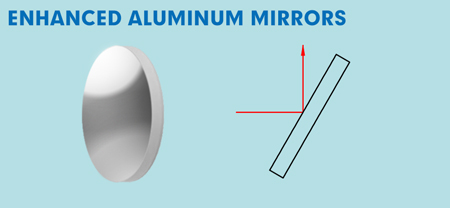

Enhanced Aluminum Mirrors 鍍鋁膜反射鏡

鍍鋁膜 BK7

• 一面鍍金屬反射膜,反面細磨或檢測拋光

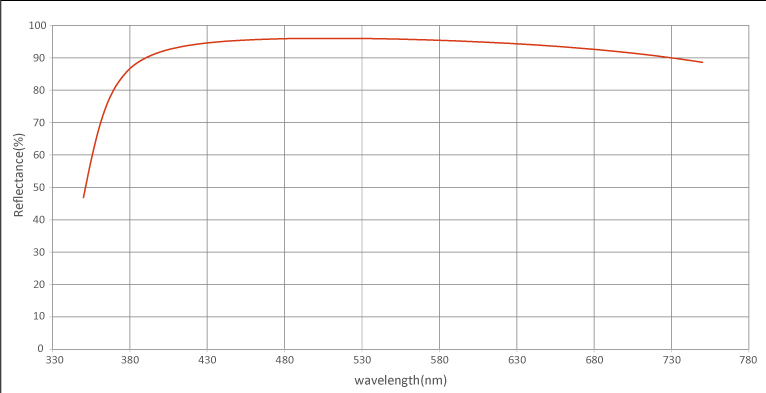

• 增強鋁:Ravg>90%@400-700nm

• 符合RoHS

Specifications
• Material :
BK7
• Dimension Tolerance :
+0.0/-0.2mm
• Thickness Tolerance :
±0.2mm
• Clear Aperture :
>90%
• Flatness :
Refer to below list
• Surface Quality :
60/40 scratch and dig
• Coating :
Metal coating on one surface, rear surface ground or inspection polished Enhanced Aluminum : Ravg>90%@400-700nm
• Damage Threshold : >1J/cm2, 20ns, 20Hz, @1064nm

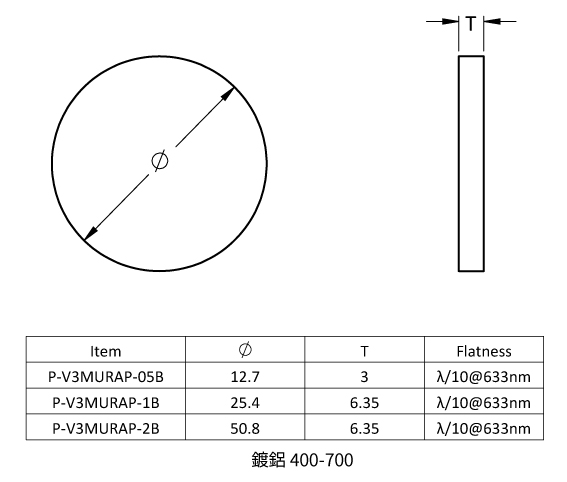

型號 / 敘述 交期 單價 數量 購物車

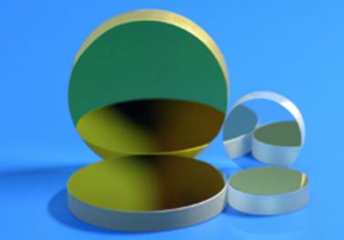

P-V3MURAP-05B

鍍鋁膜反射鏡 / Ø12.7mm / T=3mm / Flatness=/10 @633nm

3 weeks
NT$1140
P-V3MURAP-1B

鍍鋁膜反射鏡 / Ø25.4mm / T=6.35mm / Flatness=/10 @633nm

3 weeks
NT$1320
P-V3MURAP-2B

鍍鋁膜反射鏡 / Ø50.8mm / T=6.35mm / Flatness=/10 @633nm

3 weeks
NT$2880
