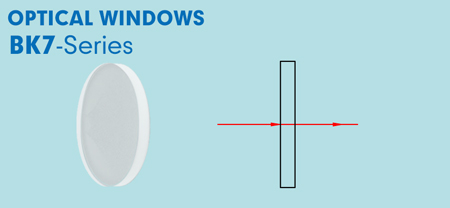

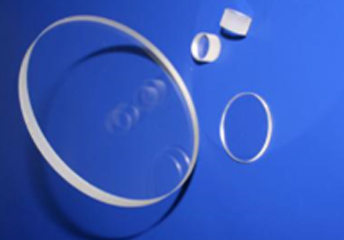

Optical Windows 標準圓形窗口鏡
| 無鍍膜 | BK7 |
| Specifications |
|
Material
|
BK7
|
|
Dimension Tolerance
|
+0.0/-0.2mm
|
|
Thickness Tolerance
|
±0.2mm
|
|
Clear Aperture
|
>90%
|
|
Parallelism
|
1 arc-min seconds
|
|
Surface Quality
|
60/40
|
|
Wavefront Distortion
|
λ@633nm per 25mm
|
|
Coating
|
Uncoated
|
| 產品 | 型號 / 敘述 | 交期 | 單價 | 數量. | 購物車 |
