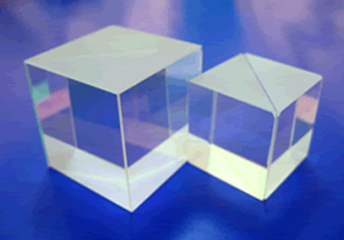

消偏振分光稜鏡
针对不同的光学波段，分光稜鏡在使用时同时也消
应用波段：
532nm
633nm
1064nm
• 材质：BK7
• 根据不同波段选择镜片
• 支持客制规格
| Specifications | |
| Material | BK7 Grade Aoptical glass |
| Dimension Tolerance | ±0.2mm |
| Clear Aperture | >90% |
| Flatness | λ/[email protected] |
| Beam Deviation | <3 arc minutes |
| Surface Quality | 60/40 |
| Absorption | <10% |
| Transmission | 45%±5% |
| Polarization | <6% |
| Coating | Non-polarizing beamsplitter coating on hypotenuse face |
| AR coating on all entrances | |
| Damage Threshold | >100mJ/cm2, 20ns, 20Hz, @1064nm |
