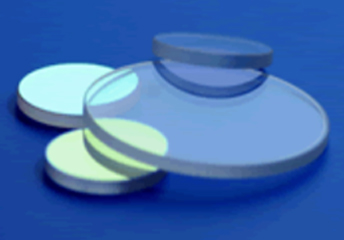

Nd：YAG输出镜
Nd：YAG输出镜是将活性Nd：YAG激光晶体放在两个互相平行的反射镜之间，将激光能量返回谐振腔，将另一部分能量输出谐振腔，保证激光输出功率和输出模式。
• 一面镀部分反射膜，反面镀增透膜
• 损伤阀值：> 5J / cm2,20ns，20Hz，@ 1064nm
| Specifications | |
| Material | BK7 |
| Dimension Tolerance | +0.0/-0.2mm |
| Thickness Tolerance | ±0.2mm |
| Clear Aperture | >90% |
| Flatness | λ/[email protected] per 25mm range |
| Wedge | <1 arc minute |
| Surface Quality | 60/40 |
| Coating | S1: Partial reflective coating, AOI 0deg |
| S2: AR coating, AOI 0deg | |
| Damage Threshold | >5J/cm2, 20ns, 20Hz, @1064nm |
