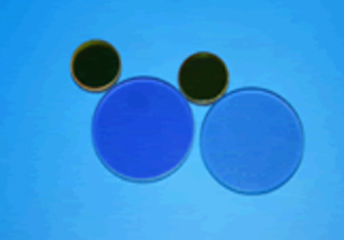

Nd：YAG谐波分离器
Nd：YAG激光谐波分离器设计用于分离光与Nd：YAG激光源的谐波
• 一面镀二向色性分色膜，反面镀增透膜
• 损伤阀值：> 5J / cm2,20ns，20Hz，@ 1064nm
| Specifications | |
| Material | BK7 |
| Dimension Tolerance | +0.0/-0.2mm |
| Thickness Tolerance | ±0.2mm |
| Clear Aperture | >90% |
| Flatness | λ/[email protected] per 25mm range |
| Parallelism | <1 arc minute |
| Surface Quality | 60/40 scratch and dig |
| Coating | Dichroic mirror coating on one side, rear side AR coated |
| Damage Threshold | >5J/cm2, 20ns, 20Hz, @1064nm |
